Shark 3216 UV 10x5 Flatbed
A flatbed perfectly suited to print specialty applications that are up to 10'x5' in size. Print up to 5" thick using UV curable inks that adheres to nearly anything at high quality 2400 dpi output.
Shark 3216 10' x 5'
WHITE INK PARKING
Not using your White Ink for a while? No problem, just hit a button and our printer will Park the White Ink and fill with flush until you need it. Then just do the same and the printer loads the White Ink.
Never worry about a cloged line or head again!
Never worry about a cloged line or head again!
QUALITY TECHNOLOGY
With 2400 and 1200 dpi high-definition output, the Shark uses grayscale technology to ensure prints have a smooth gradation in skin tones as well as sharp and well saturated solids and text.
StratoJet incorporates Accurate Dot Placement (ADP). The ADP integrates the printer controller system to the color management software to assign a specific drop size along the print, allowing the user to print sharp text and vibrant colors with speed.
We control every step of our well laid out manufacturing process from how the inks are made, to how they are handled through our printer and carefully produced and selected components and how the inks are applied to the media.
StratoJet incorporates Accurate Dot Placement (ADP). The ADP integrates the printer controller system to the color management software to assign a specific drop size along the print, allowing the user to print sharp text and vibrant colors with speed.
We control every step of our well laid out manufacturing process from how the inks are made, to how they are handled through our printer and carefully produced and selected components and how the inks are applied to the media.
Grayscale DoD Piezo
StratoJet Shark Flatbedsuse the latest Grayscale Drop on Demand Piezo print heads, known for its high quality, durability and consistent performance, that come with a special circuit board to allow for individually control of pressure, temp and purging and
StratoJet's variable drop size, grayscale technology and ADP (Advanced Drop Placement) allows you to print a variable drop size at 5, 10, and 15 picoliters (PL) and overlaying the drops achieving a printing resolution up to 2400 dpi.
StratoJet's variable drop size, grayscale technology and ADP (Advanced Drop Placement) allows you to print a variable drop size at 5, 10, and 15 picoliters (PL) and overlaying the drops achieving a printing resolution up to 2400 dpi.
13 COLORS
CMYK
Choose a regular or high production stagger color configuration, both provide high-quality and consistent results
Specialty Colors
Adding Specialty colors Red, Green, Orange and Violet expands your color gamut giving extra vibrant colors as well as an application for specific corporate colors.
Light Colors
Add Light cyan, magenta and black to produce better spot colors, natural skin tones, subtle gradients and shading
Spot Colors
Choose from single or double white and varnish, with white providing the capability to produce a base layer or highlight-specific path of an image on clear and dark media, and varnish to create an embossed effect or add a matte, satin or gloss finish to your print
Complete Print Control with One Ink system, 13 Colors
Print on virtually any rigid media up to 4" (1 O cm) thick and offer your customers a verity of durable specialty printed.
Corrugated - Plastic - Foam Boards - Ceramic Tiles - Glass - Metal - Wood - Paper - Fabrics - Novelties- POP Displays - Proofs - MockUps - Packaging - Ceramic - Aluminum - Composite - and much more
Printers Like No others...
...and we mean NONE !
Innovative and Robust
To increase reliability, StratoJet uses high-end Servo motors instead of using significantly inexpensive and low consistency DC motors. To ensure fidelity across the print image, particularly when working on tiled applications. StratoJet chooses to use an ink delivery system that 'pulls' the ink with vacuum, instead of the much less efficient positive pressure system, all other printers use. Ever heard of Inks drying in the Heads...?
Remote Tech
We use the highest quality components in our printers and designed ground up with serviceability in mind. If there's an issue, with a password, we log into your printer remotely, then read, evaluate log files and fix issues remotely; yes, remotely! We found the most of service calls are not due to hardware issues. StratoJet starts by training our technicians to be application experts before they become a hardware technician.
More for Less
Our Water Cooled LED Curing Lamps have exceptional long life, and not a consumable part and low-power consumption. The lamps don't need to warm up, need to be be adjusted and instantly cures the ink, while generating low heat, to allow more print applications that are heat sensitive. Depending on the media or printing environment, static can cause quality issues, so to minimize this, an anti-static bar is built into the printer carriage.
Specifications
Pure. Professional. Performance.
Handling
6 zone vacuum table
Max Thickness
4” (10.16 cm)
Rigid Media Support
126" X 63" & 8 lb/ft2 (320x 160 cm & 35 kg/m2)
Maximum Speed
(CMYK x3) 1352 ft2/hr - Staggered (125 m2/hr), (42 Boards/hr)*
(CMYK x1) 602 ft2/hr (55 m2/hr), (19 Boards/hr)*
(CMYK x1) 602 ft2/hr (55 m2/hr), (19 Boards/hr)*
Production Speed
(CMYK x3) 355 ft2/hr - Staggered (32 m2/hr), (11 Boards/hr)*
(CMYK x1) 145 ft2/hr (13 m2/hr), (5 Boards/hr)*
(CMYK x1) 145 ft2/hr (13 m2/hr), (5 Boards/hr)*
Print Head Resolution
2400 dpi
Drop Size
Variable 5, 15 & 25 Picoliter with Advanced Dot Placement (ADP) tech
Margin
Full Bleed and Edge to Edge
Printhead
Grayscale drop on demand piezo
UV Curing Lamp Type
Water Cooled LED (estimated life 18,000* hrs)

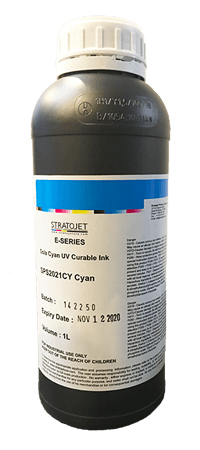

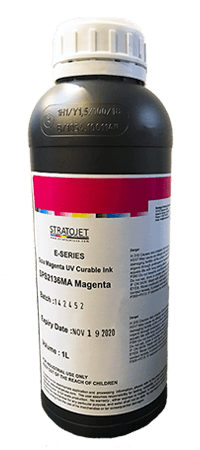

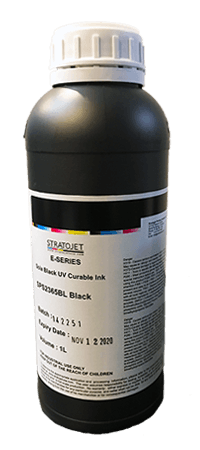

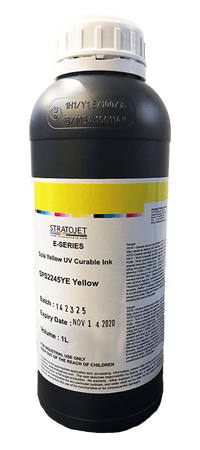

Ink Type
Sola UV Curable Ink
Ink Capacity
1 Liter Reservoirs
Connectivity
USB
Supported RIP Software
StratoFlex / Onyx / Flexi / Caldera / Ergosoft
Assembled Dimensions
(L x W x H) 218" x 92" x 60" (554 x 233 x 153 cm)
Shipping Dimensions
(L x W x H) 241” x 92” x 67” (613 x 234 x 171 cm)
Weight Shipping
4410 lb (2000 Kg)
Temperature
68 to 79 F (20 to 26 C)
Humidity
40% to 70% Non-Condensing
Electrical
1x 208-220 VAC 50/60 Hz 30A, Single Phase
Weight Assembled
3528 lb (1600 Kg)
TIME IS MONEY
Time Savings Compared to other Current Printers
Overall Print Speeds90%
White Ink Handeling75%
Startup Shutdown Time Savings73%
Head Prep and Purge81%
Less Maintenance and Upkeep82%
Output Quality At Speed95%
Uptime85%
Durability75%
Ease of Use80%
